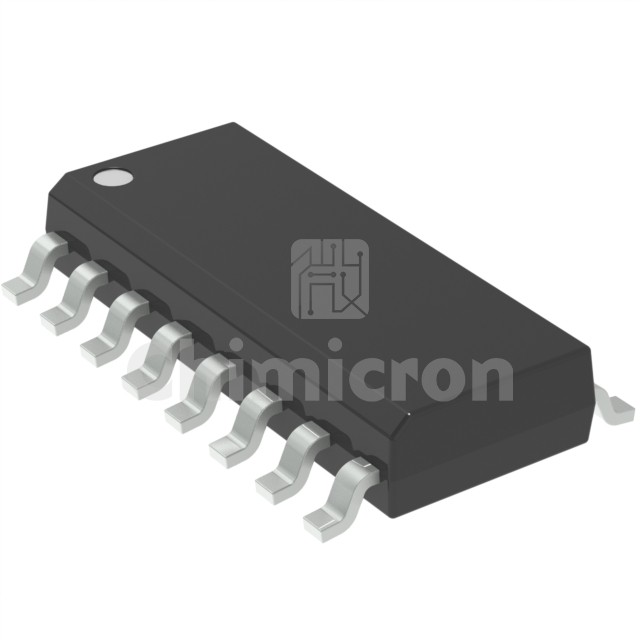

MC14052BDR2G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC MUX/DEMUX DUAL 4X1 16SOIC
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:210000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MC14052BDR2G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 210000 pieces of MC14052BDR2G in stock available now. Submit an inquiry for MC14052BDR2G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitDP4T
Multiplexer/Demultiplexer Circuit2:4
Number of Circuits2
On-State Resistance (Max)280Ohm
Channel-to-Channel Matching (ΔRon)10Ohm
Voltage - Supply, Single (V+)3V ~ 18V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)-
-3db Bandwidth17MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))7.5pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
