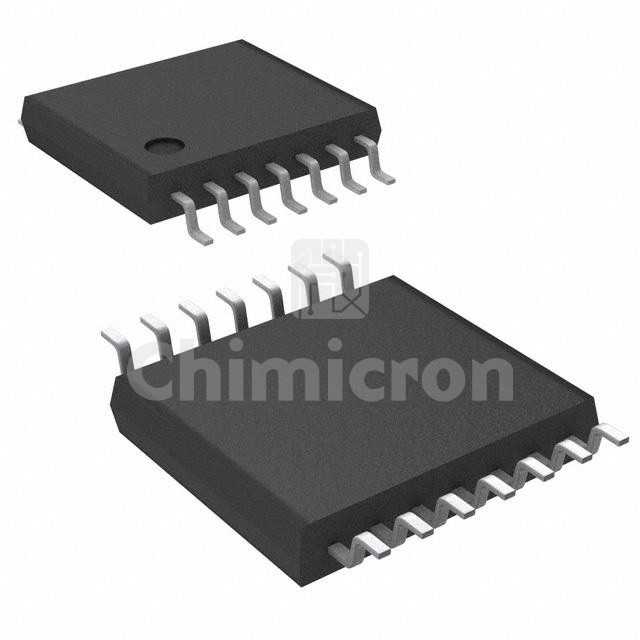

ADG1604BRUZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 4X1 14TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:8400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1604BRUZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 8400 pieces of ADG1604BRUZ-REEL7 in stock available now. Submit an inquiry for ADG1604BRUZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits1
On-State Resistance (Max)1.1Ohm
Channel-to-Channel Matching (ΔRon)30mOhm
Voltage - Supply, Single (V+)3.3V ~ 16V
Voltage - Supply, Dual (V±)±3.3V ~ 8V
Switch Time (Ton, Toff) (Max)95ns, 173ns
-3db Bandwidth19MHz
Charge Injection125pC
Channel Capacitance (CS(off), CD(off))60pF, 270pF
Current - Leakage (IS(off)) (Max)200pA
Crosstalk-70dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package14-TSSOP
