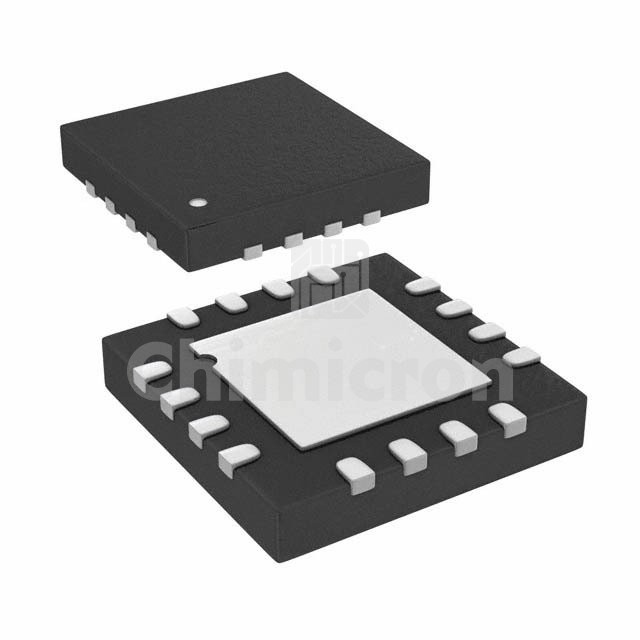

ADG774ABCPZ-R2
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MUX QUAD 2X1 16LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:1680
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG774ABCPZ-R2 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1680 pieces of ADG774ABCPZ-R2 in stock available now. Submit an inquiry for ADG774ABCPZ-R2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)3.5Ohm
Channel-to-Channel Matching (ΔRon)150mOhm
Voltage - Supply, Single (V+)3V ~ 5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)12ns, 6ns
-3db Bandwidth400MHz
Charge Injection6pC
Channel Capacitance (CS(off), CD(off))5pF, 7.5pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-70dB @ 10MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-WFQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP (3x3)
