ADG506AKN
Manufacturer: Rochester Electronics
Description: SINGLE-ENDED MUX,16 CHANNEL
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:100128
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG506AKN Rochester Electronics at chimicron.com. We have 100128 pieces of ADG506AKN in stock available now. Submit an inquiry for ADG506AKN or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)300Ohm
Channel-to-Channel Matching (ΔRon)15Ohm
Voltage - Supply, Single (V+)10.8V ~ 16.5V
Voltage - Supply, Dual (V±)±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max)300ns, 300ns
-3db Bandwidth-
Charge Injection4pC
Channel Capacitance (CS(off), CD(off))5pF, 44pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole

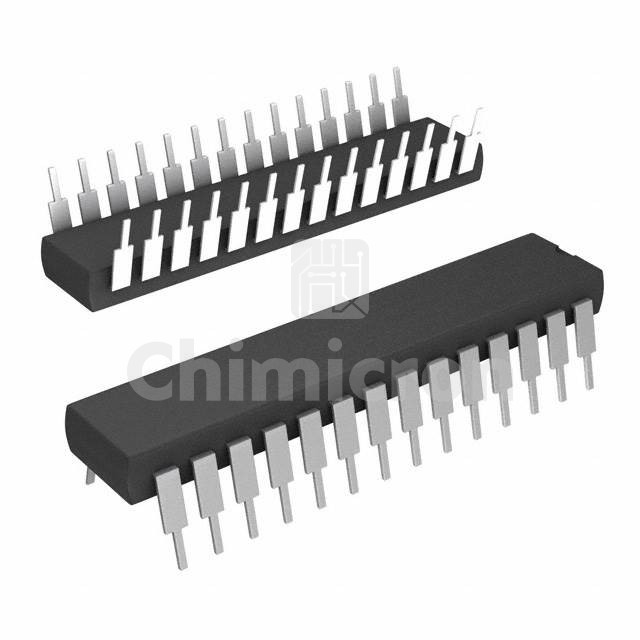

Package / Case28-DIP (0.600", 15.24mm)
Supplier Device Package28-PDIP
