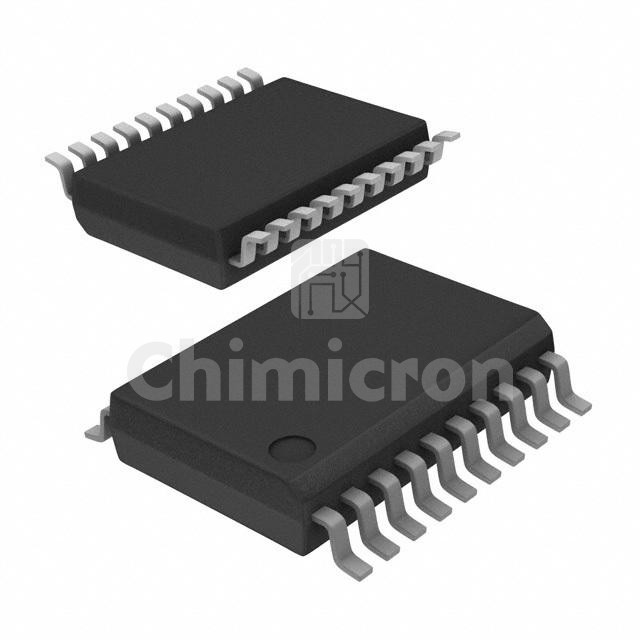

ADG1334BRSZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH QUAD SPDT 20SSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:80000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1334BRSZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 80000 pieces of ADG1334BRSZ in stock available now. Submit an inquiry for ADG1334BRSZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO/NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)200Ohm
Channel-to-Channel Matching (ΔRon)5Ohm
Voltage - Supply, Single (V+)12V
Voltage - Supply, Dual (V±)±15V
Switch Time (Ton, Toff) (Max)130ns, 85ns
-3db Bandwidth700MHz
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))5pF, 5pF
Current - Leakage (IS(off)) (Max)10nA
Crosstalk-85dB @ 1MHz
Operating Temperature-40°C ~ 105°C (TA)
Mounting TypeSurface Mount
Package / Case20-SSOP (0.209", 5.30mm Width)
Supplier Device Package20-SSOP
