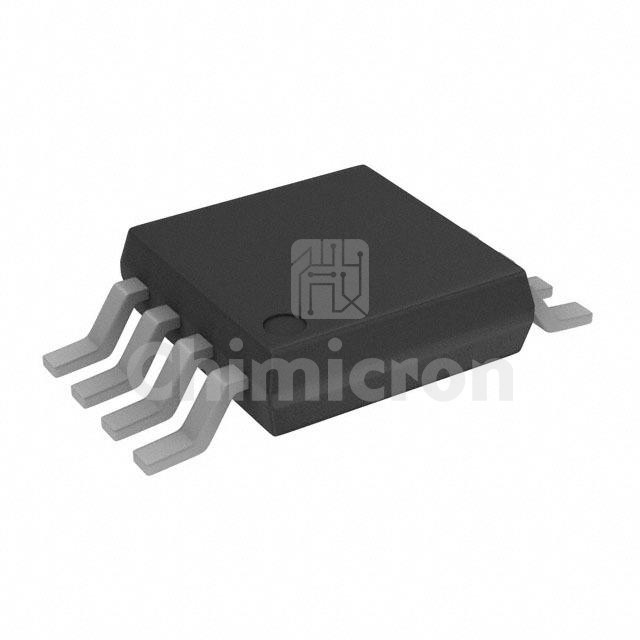

ADG821BRMZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH DUAL SPST 8MSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:3150
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG821BRMZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 3150 pieces of ADG821BRMZ in stock available now. Submit an inquiry for ADG821BRMZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits2
On-State Resistance (Max)600mOhm
Channel-to-Channel Matching (ΔRon)160mOhm
Voltage - Supply, Single (V+)1.8V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)45ns, 16ns
-3db Bandwidth24MHz
Charge Injection15pC
Channel Capacitance (CS(off), CD(off))85pF, 98pF
Current - Leakage (IS(off)) (Max)250pA
Crosstalk-82dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package8-MSOP
