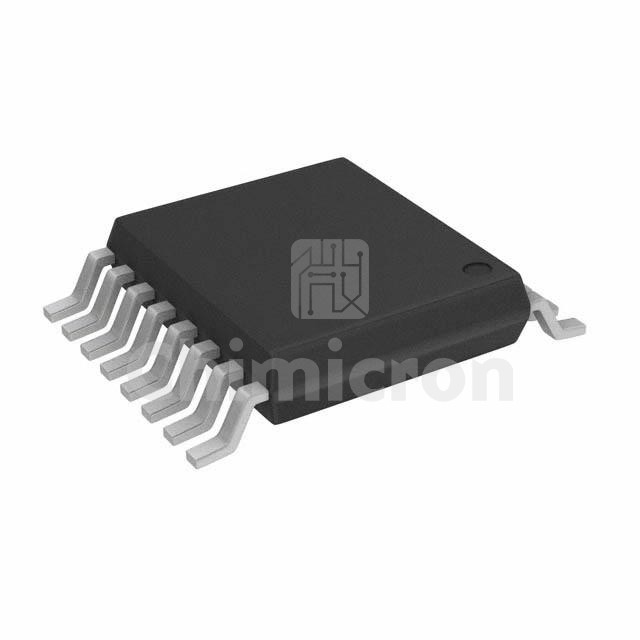

DG509BEQ-T1-E3
Manufacturer: Vishay / Siliconix
Description: IC MUX DUAL 4CHAN PREC 16-TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:15000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG509BEQ-T1-E3 Vishay / Siliconix at chimicron.com. We have 15000 pieces of DG509BEQ-T1-E3 in stock available now. Submit an inquiry for DG509BEQ-T1-E3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)380Ohm
Channel-to-Channel Matching (ΔRon)10Ohm
Voltage - Supply, Single (V+)12V
Voltage - Supply, Dual (V±)±5V ~ 20V
Switch Time (Ton, Toff) (Max)250ns, 240ns
-3db Bandwidth250MHz
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))3pF, 8pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-88dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
