DG9409EDN-T1-GE4
Manufacturer: Vishay / Siliconix
Description: IC ANLG SWITCH PREC 8CH 16QFN
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG9409EDN-T1-GE4 Vishay / Siliconix at chimicron.com. We have 5250 pieces of DG9409EDN-T1-GE4 in stock available now. Submit an inquiry for DG9409EDN-T1-GE4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)7Ohm
Channel-to-Channel Matching (ΔRon)3.6Ohm (Max)
Voltage - Supply, Single (V+)2.7V ~ 12V
Voltage - Supply, Dual (V±)±3V ~ 6V
Switch Time (Ton, Toff) (Max)70ns, 44ns
-3db Bandwidth-
Charge Injection29pC
Channel Capacitance (CS(off), CD(off))23pF, 112pF
Current - Leakage (IS(off)) (Max)2nA
Crosstalk-85dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

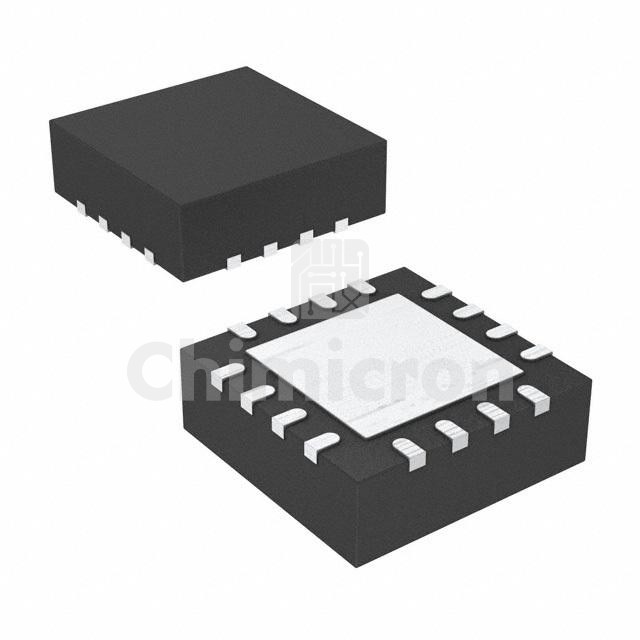

Package / Case16-VQFN Exposed Pad
Supplier Device Package16-QFN (4x4)
