AD7503JQ
Manufacturer: Rochester Electronics
Description: SINGLE-ENDED MUX,8 CHANNEL
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AD7503JQ Rochester Electronics at chimicron.com. We have 10000 pieces of AD7503JQ in stock available now. Submit an inquiry for AD7503JQ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Switch Circuit-
Multiplexer/Demultiplexer Circuit8:1
Number of Circuits1
On-State Resistance (Max)300Ohm
Channel-to-Channel Matching (ΔRon)12Ohm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±15V
Switch Time (Ton, Toff) (Max)800ns, 800ns (Typ)
-3db Bandwidth-
Charge Injection-
Channel Capacitance (CS(off), CD(off))5pF, 30pF
Current - Leakage (IS(off)) (Max)-
Crosstalk-
Operating Temperature-
Mounting TypeThrough Hole

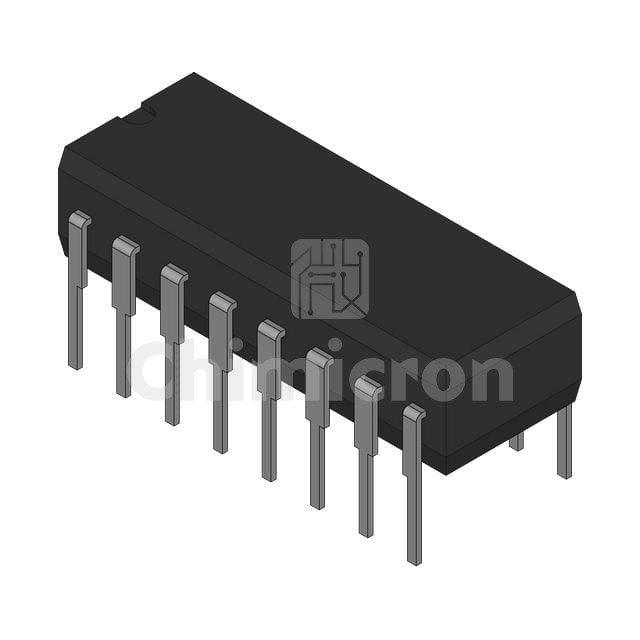

Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CDIP
