ADG1438BCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 8:1 20LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:1523
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1438BCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1523 pieces of ADG1438BCPZ-REEL7 in stock available now. Submit an inquiry for ADG1438BCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit8:1
Number of Circuits1
On-State Resistance (Max)11.5Ohm
Channel-to-Channel Matching (ΔRon)550mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)-
-3db Bandwidth82MHz
Charge Injection4pC
Channel Capacitance (CS(off), CD(off))9pF, 58pF
Current - Leakage (IS(off)) (Max)150pA
Crosstalk-70dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount

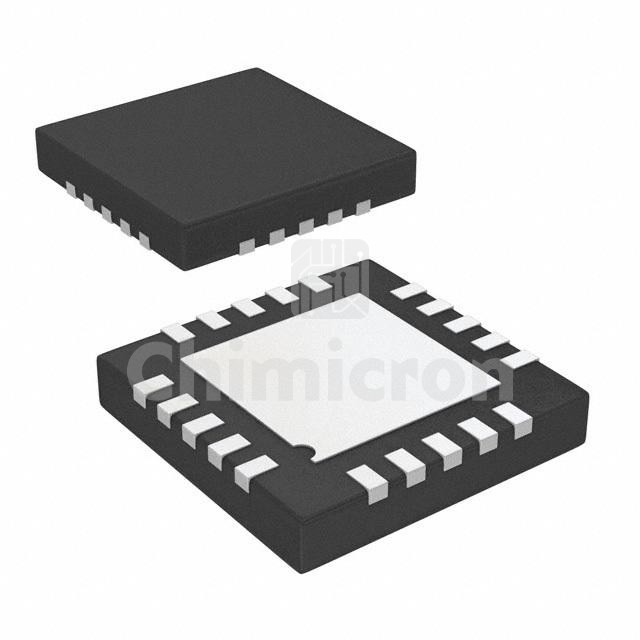

Package / Case20-WFQFN Exposed Pad, CSP
Supplier Device Package20-LFCSP-WQ (4x4)
