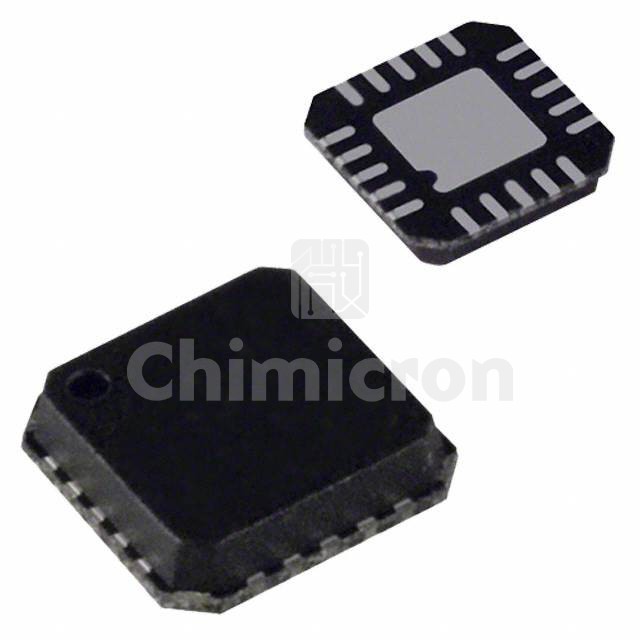

ADG788BCPZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH QUAD SPDT 20LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG788BCPZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1000 pieces of ADG788BCPZ in stock available now. Submit an inquiry for ADG788BCPZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTray
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)4.5Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)1.8V ~ 5.5V
Voltage - Supply, Dual (V±)±2.5V
Switch Time (Ton, Toff) (Max)21ns, 10ns (Typ)
-3db Bandwidth160MHz
Charge Injection5pC
Channel Capacitance (CS(off), CD(off))11pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-80dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-WFQFN Exposed Pad, CSP
Supplier Device Package20-LFCSP-WQ (4x4)
