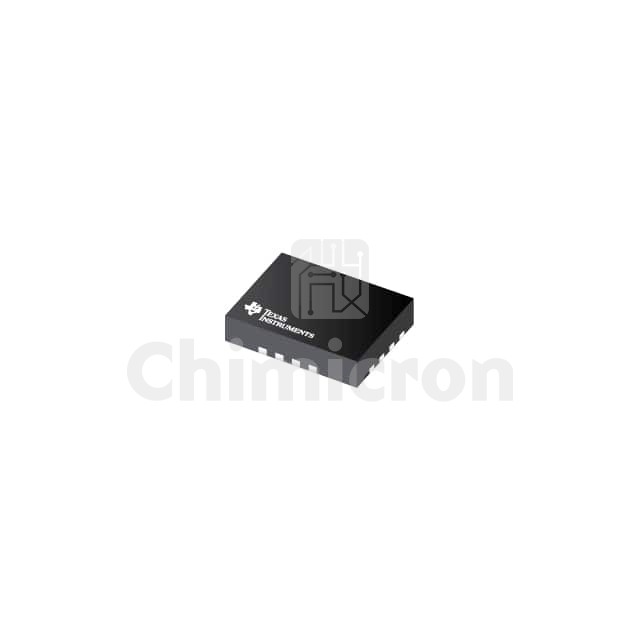

TMUX1109RSVR
Manufacturer: Texas
Description: IC SWITCH DUAL 16UQFN
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMUX1109RSVR Texas at chimicron.com. We have 2000 pieces of TMUX1109RSVR in stock available now. Submit an inquiry for TMUX1109RSVR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)4Ohm
Channel-to-Channel Matching (ΔRon)180mOhm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±2.75V
Switch Time (Ton, Toff) (Max)12ns, 6ns (Typ)
-3db Bandwidth135MHz
Charge Injection-1pC
Channel Capacitance (CS(off), CD(off))7.5pF, 32pF
Current - Leakage (IS(off)) (Max)80pA
Crosstalk-90dB ~ -80dB @ 1MHz ~ 10MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-UFQFN
Supplier Device Package16-UQFN (2.6x1.8)
