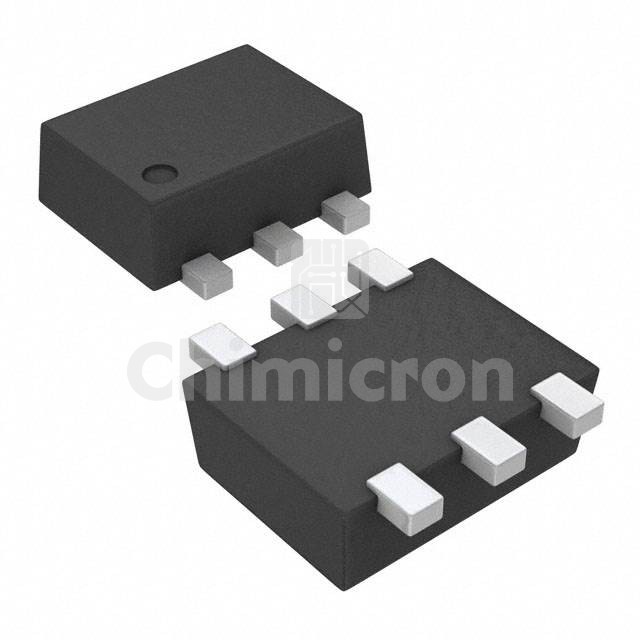

SN74LVC1G3157DRLR
Manufacturer: Texas
Description: IC SWITCH SPDT SINGLE 6SOT
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SN74LVC1G3157DRLR Texas at chimicron.com. We have 21000 pieces of SN74LVC1G3157DRLR in stock available now. Submit an inquiry for SN74LVC1G3157DRLR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits1
On-State Resistance (Max)15Ohm
Channel-to-Channel Matching (ΔRon)100mOhm
Voltage - Supply, Single (V+)1.65V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)5.7ns, 3.8ns
-3db Bandwidth340MHz
Charge Injection7pC
Channel Capacitance (CS(off), CD(off))5.2pF
Current - Leakage (IS(off)) (Max)1µA
Crosstalk-54dB @ 10MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device Package6-SOT
