ADG1407BCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 8X1 32LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:30900
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1407BCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 30900 pieces of ADG1407BCPZ-REEL7 in stock available now. Submit an inquiry for ADG1407BCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit8:1
Number of Circuits2
On-State Resistance (Max)11.5Ohm
Channel-to-Channel Matching (ΔRon)550mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)110ns, 120ns
-3db Bandwidth110MHz
Charge Injection10pC
Channel Capacitance (CS(off), CD(off))8pF, 45pF
Current - Leakage (IS(off)) (Max)250pA
Crosstalk-70dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount

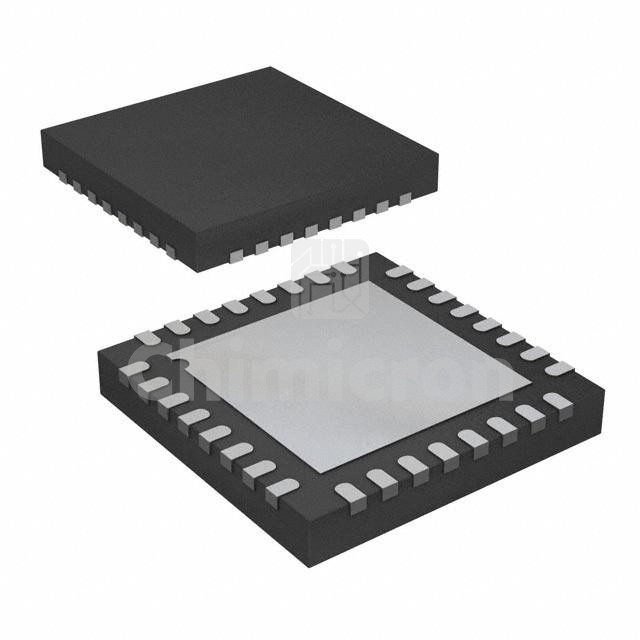

Package / Case32-WFQFN Exposed Pad, CSP
Supplier Device Package32-LFCSP-WQ (5x5)
