ADG786BCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH TRIPLE SPDT 20LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2462
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG786BCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2462 pieces of ADG786BCPZ-REEL7 in stock available now. Submit an inquiry for ADG786BCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits3
On-State Resistance (Max)4.5Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)1.8V ~ 5.5V
Voltage - Supply, Dual (V±)±2.5V
Switch Time (Ton, Toff) (Max)21ns, 10ns (Typ)
-3db Bandwidth160MHz
Charge Injection5pC
Channel Capacitance (CS(off), CD(off))11pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-80dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

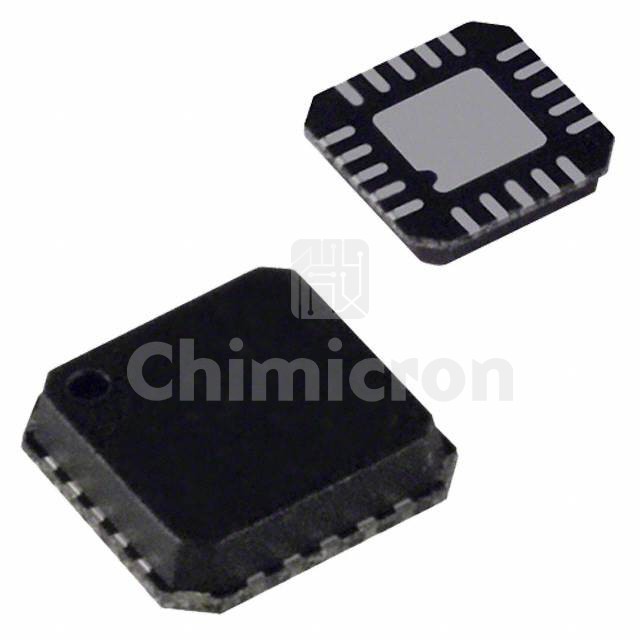

Package / Case20-WFQFN Exposed Pad, CSP
Supplier Device Package20-LFCSP-WQ (4x4)
