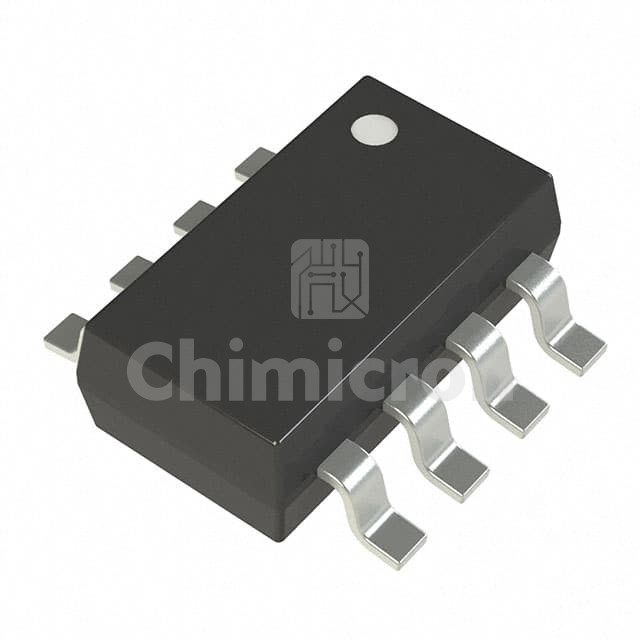

TS12A12511DCNR
Manufacturer: Texas
Description: IC SWITCH SGL SPDT ANLG SOT23-8
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TS12A12511DCNR Texas at chimicron.com. We have 10500 pieces of TS12A12511DCNR in stock available now. Submit an inquiry for TS12A12511DCNR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits1
On-State Resistance (Max)5Ohm (Typ)
Channel-to-Channel Matching (ΔRon)1Ohm
Voltage - Supply, Single (V+)2.7V ~ 12V
Voltage - Supply, Dual (V±)±2.7V ~ 6V
Switch Time (Ton, Toff) (Max)95ns, 50ns
-3db Bandwidth93MHz
Charge Injection26pC
Channel Capacitance (CS(off), CD(off))14pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-70dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseSOT-23-8
Supplier Device PackageSOT-23-8
