ADG1414BCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SW SPST 9.5OHM RON 24LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2123
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1414BCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2123 pieces of ADG1414BCPZ-REEL7 in stock available now. Submit an inquiry for ADG1414BCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits8
On-State Resistance (Max)11.5Ohm
Channel-to-Channel Matching (ΔRon)550mOhm
Voltage - Supply, Single (V+)12V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)93ns, 35ns
-3db Bandwidth256MHz
Charge Injection10pC
Channel Capacitance (CS(off), CD(off))8pF
Current - Leakage (IS(off)) (Max)150pA
Crosstalk-75dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount

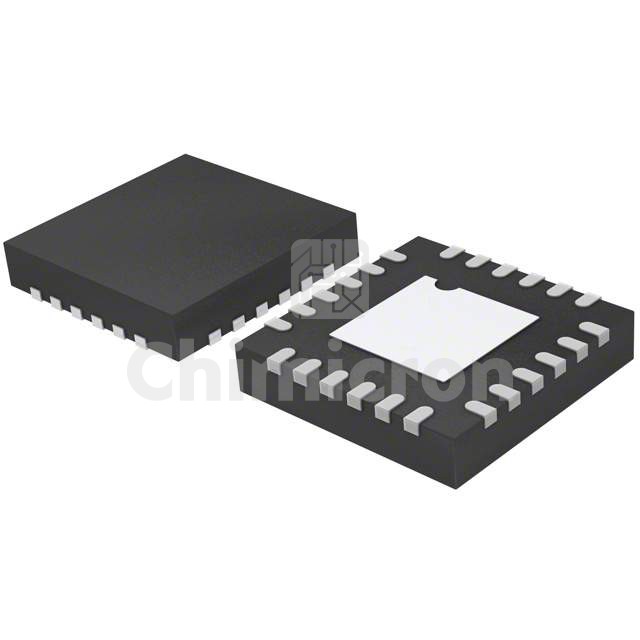

Package / Case24-WFQFN Exposed Pad, CSP
Supplier Device Package24-LFCSP-WQ (4x4)
