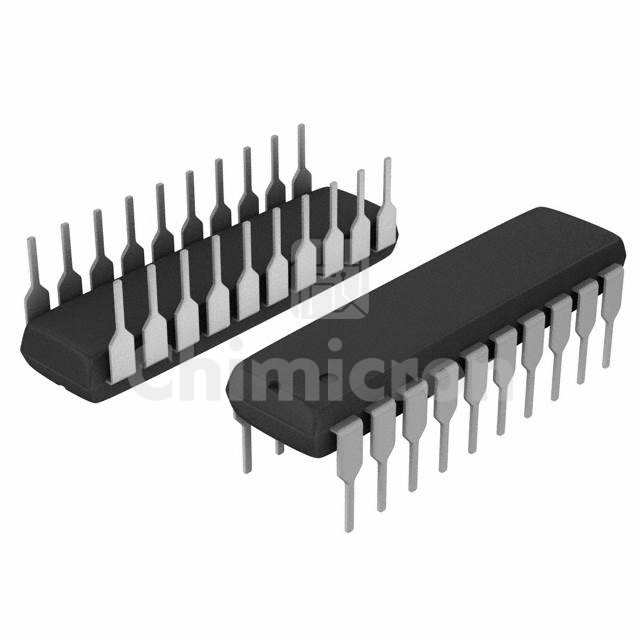

ADG333ABNZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH QUAD SPDT 20DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:40000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG333ABNZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 40000 pieces of ADG333ABNZ in stock available now. Submit an inquiry for ADG333ABNZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)45Ohm
Channel-to-Channel Matching (ΔRon)5Ohm
Voltage - Supply, Single (V+)3V ~ 30V
Voltage - Supply, Dual (V±)±3V ~ 20V
Switch Time (Ton, Toff) (Max)90ns, 80ns (Typ)
-3db Bandwidth-
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))7pF
Current - Leakage (IS(off)) (Max)250pA
Crosstalk-85dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case20-DIP (0.300", 7.62mm)
Supplier Device Package20-PDIP
