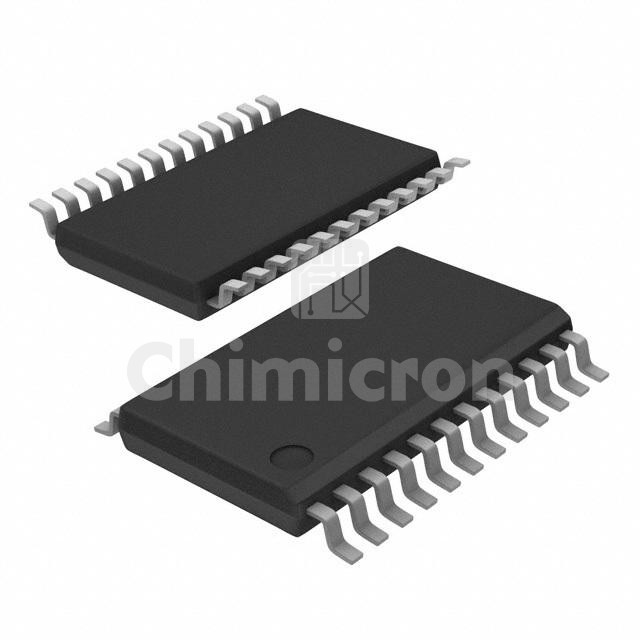

ADG714BRUZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH OCTAL SPST 24TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:29400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG714BRUZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 29400 pieces of ADG714BRUZ-REEL7 in stock available now. Submit an inquiry for ADG714BRUZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits8
On-State Resistance (Max)4.5Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)2.7V ~ 5.5V
Voltage - Supply, Dual (V±)±2.5V
Switch Time (Ton, Toff) (Max)20ns, 8ns (Typ)
-3db Bandwidth155MHz
Charge Injection3pC
Channel Capacitance (CS(off), CD(off))11pF, 11pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-90dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package24-TSSOP
