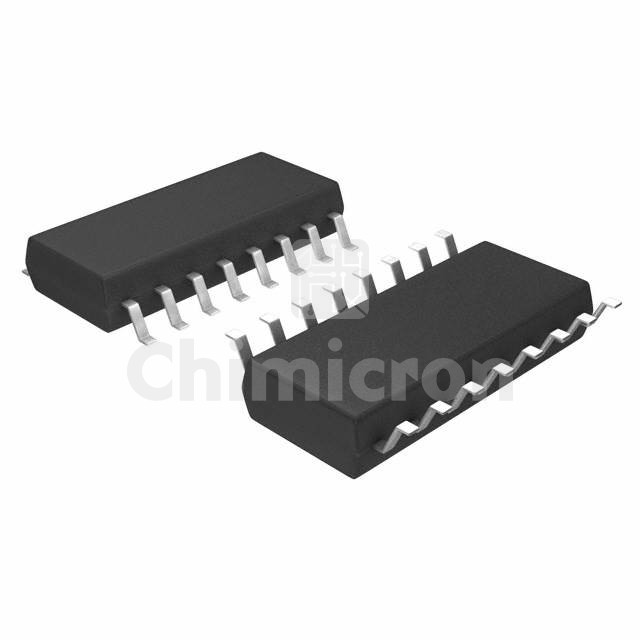

CD4053BNSR
Manufacturer: Texas
Description: IC MUX/DEMUX TRIPLE 2X1 16SO
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:4000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CD4053BNSR Texas at chimicron.com. We have 4000 pieces of CD4053BNSR in stock available now. Submit an inquiry for CD4053BNSR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits3
On-State Resistance (Max)240Ohm
Channel-to-Channel Matching (ΔRon)5Ohm
Voltage - Supply, Single (V+)3V ~ 20V
Voltage - Supply, Dual (V±)±2.5V ~ 9V
Switch Time (Ton, Toff) (Max)-
-3db Bandwidth30MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))0.2pF, 9pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-40dB @ 6MHz
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.209", 5.30mm Width)
Supplier Device Package16-SO
