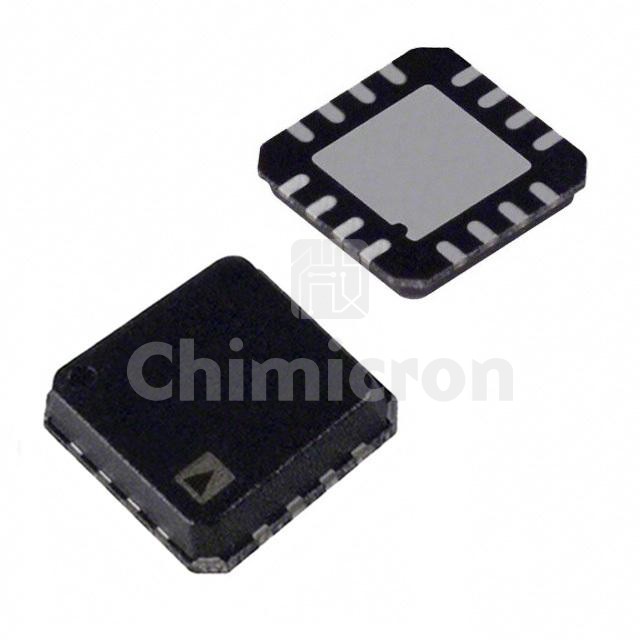

ADG1612BCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH QUAD SPST 16LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1612BCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 10500 pieces of ADG1612BCPZ-REEL7 in stock available now. Submit an inquiry for ADG1612BCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)1.1Ohm
Channel-to-Channel Matching (ΔRon)30mOhm
Voltage - Supply, Single (V+)3.3V ~ 16V
Voltage - Supply, Dual (V±)±3.3V ~ 8V
Switch Time (Ton, Toff) (Max)156ns, 87ns
-3db Bandwidth38MHz
Charge Injection170pC
Channel Capacitance (CS(off), CD(off))60pF, 60pF
Current - Leakage (IS(off)) (Max)300pA
Crosstalk-110dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-VQ (4x4)
