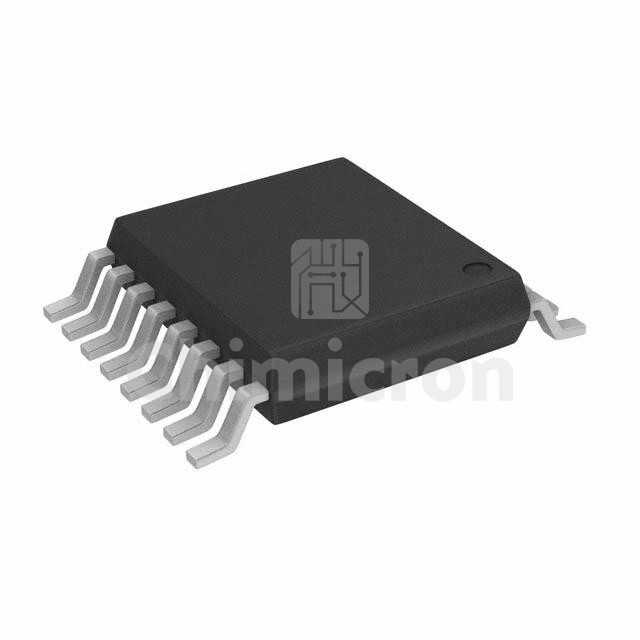

M74HC4316TTR
Manufacturer: STMicroelectronics
Description: IC SWITCH QUAD 1X1 16TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the M74HC4316TTR STMicroelectronics at chimicron.com. We have 10000 pieces of M74HC4316TTR in stock available now. Submit an inquiry for M74HC4316TTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)70Ohm
Channel-to-Channel Matching (ΔRon)5Ohm
Voltage - Supply, Single (V+)2V ~ 12V
Voltage - Supply, Dual (V±)±1V ~ 6V
Switch Time (Ton, Toff) (Max)18ns, 29ns
-3db Bandwidth43MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))1pF, 5pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-50dB @ 1MHz
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
