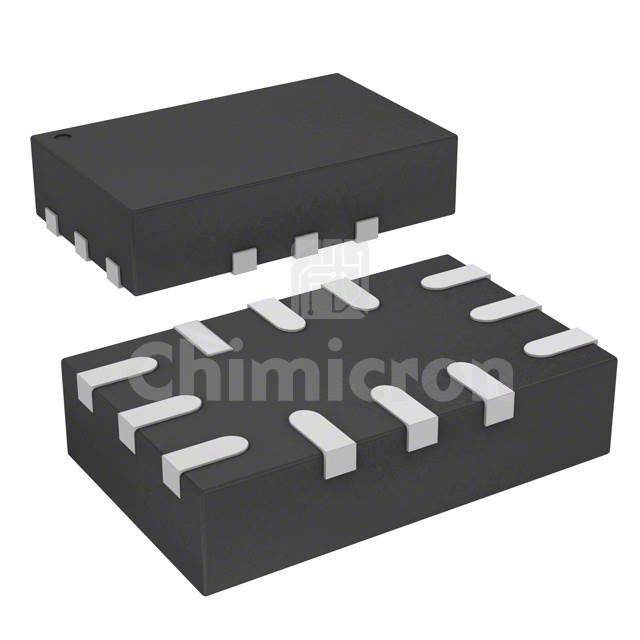

STG3856QTR
Manufacturer: STMicroelectronics
Description: IC SWITCH DUAL SP3T 12QFN
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:34488
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STG3856QTR STMicroelectronics at chimicron.com. We have 34488 pieces of STG3856QTR in stock available now. Submit an inquiry for STG3856QTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSP3T
Multiplexer/Demultiplexer Circuit3:1
Number of Circuits2
On-State Resistance (Max)1Ohm
Channel-to-Channel Matching (ΔRon)10mOhm
Voltage - Supply, Single (V+)1.65V ~ 4.3V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)40ns, 20ns
-3db Bandwidth100MHz
Charge Injection55pC
Channel Capacitance (CS(off), CD(off))5pF
Current - Leakage (IS(off)) (Max)20nA
Crosstalk-84dB @ 100kHz
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case12-UFQFN
Supplier Device Package12-QFN (2.2x1.4)
Related Parts for STG3856QTR
Linear Technology (Analog Devices, Inc.)
ADG709CRUZ-REEL7IC MULTIPLEXER DUAL 4X1 16TSSOP
In Stock: 13650
