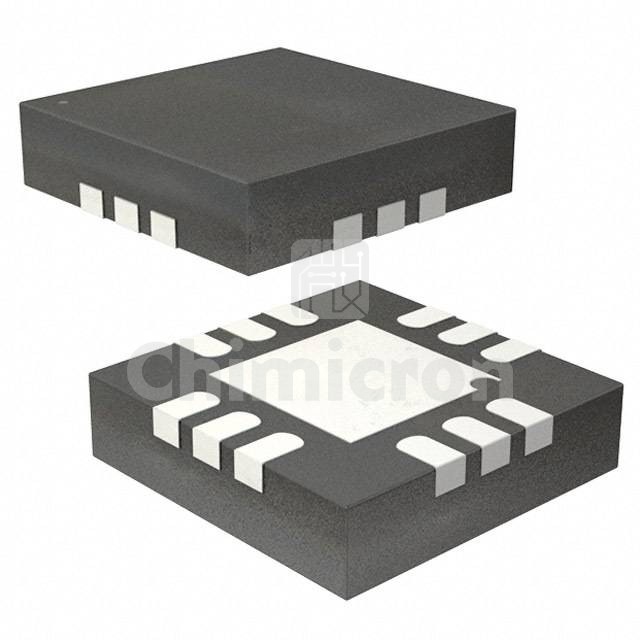

ADG772BCPZ-1REEL
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MUX/DEMUX DUAL SPDT 12LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:4515
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG772BCPZ-1REEL Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 4515 pieces of ADG772BCPZ-1REEL in stock available now. Submit an inquiry for ADG772BCPZ-1REEL or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)6.7Ohm (Typ)
Channel-to-Channel Matching (ΔRon)40mOhm
Voltage - Supply, Single (V+)2.7V ~ 3.6V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)12.5ns, 9.5ns
-3db Bandwidth630MHz
Charge Injection0.5pC
Channel Capacitance (CS(off), CD(off))2.4pF, 6.9pF
Current - Leakage (IS(off)) (Max)200pA
Crosstalk-90dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case12-WFQFN Exposed Pad, CSP
Supplier Device Package12-LFCSP-WQ (3x3)
