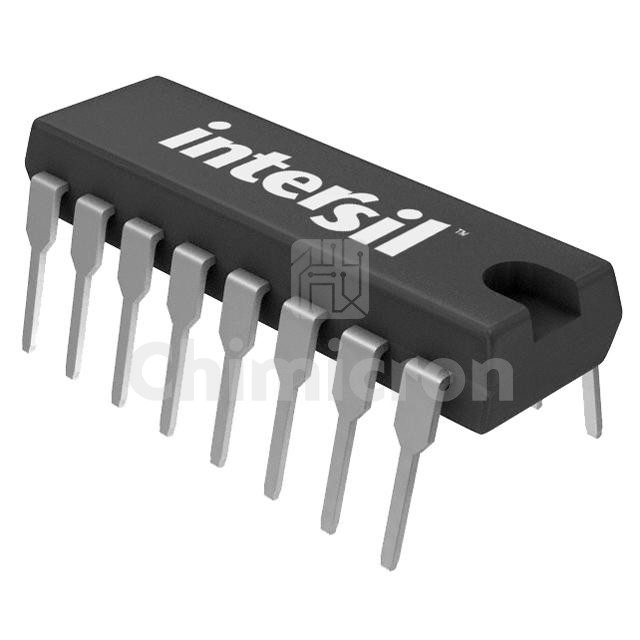

DG411DJZ
Manufacturer: Intersil (Renesas Electronics America)
Description: IC SWITCH QUAD SPST 16DIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG411DJZ Intersil (Renesas Electronics America) at chimicron.com. We have 20000 pieces of DG411DJZ in stock available now. Submit an inquiry for DG411DJZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)35Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)5V ~ 44V
Voltage - Supply, Dual (V±)±5V ~ 20V
Switch Time (Ton, Toff) (Max)175ns, 145ns
-3db Bandwidth-
Charge Injection5pC
Channel Capacitance (CS(off), CD(off))9pF, 9pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-85dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-PDIP
