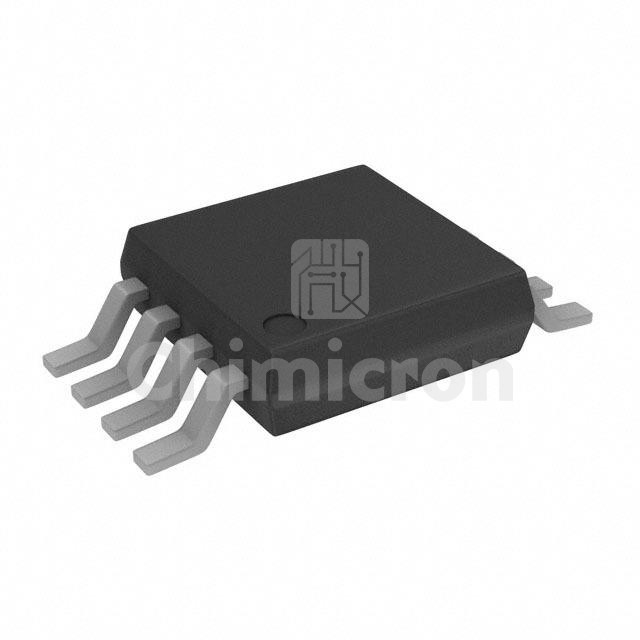

ADG5401BRMZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH SPST 8MSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:9800
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG5401BRMZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 9800 pieces of ADG5401BRMZ in stock available now. Submit an inquiry for ADG5401BRMZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits1
On-State Resistance (Max)7Ohm
Channel-to-Channel Matching (ΔRon)-
Voltage - Supply, Single (V+)9V ~ 40V
Voltage - Supply, Dual (V±)±9V ~ 22V
Switch Time (Ton, Toff) (Max)21ns, 23ns
-3db Bandwidth170MHz
Charge Injection275pC
Channel Capacitance (CS(off), CD(off))21pF, 23pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package8-MSOP
