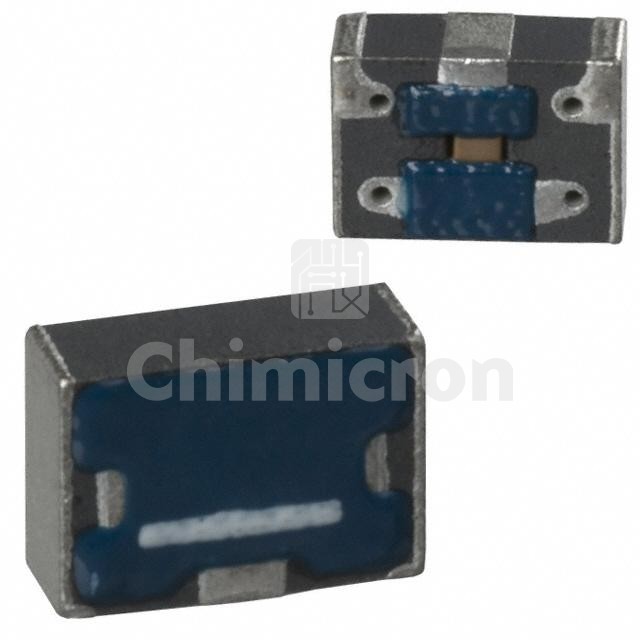

ACH4518-472-TD01
Manufacturer: TDK Corporation
Description: FILTER LC(T) SMD
Category : Filters
Family: EMI/RFI Filters (LC, RC Networks)
Series: ACH
In Stock:200000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACH4518-472-TD01 TDK Corporation at chimicron.com. We have 200000 pieces of ACH4518-472-TD01 in stock available now. Submit an inquiry for ACH4518-472-TD01 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesACH
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusNot For New Designs
TypeLow Pass
Filter Order3rd
TechnologyLC (T-Type)
Number of Channels1
Center / Cutoff Frequency-
Attenuation Value25dB @ 25MHz ~ 90MHz
Resistance - Channel (Ohms)0.06
Current2 A
Values-
ESD ProtectionNo
Operating Temperature-40°C ~ 125°C
ApplicationsGeneral Purpose
Voltage - Rated50V
Mounting TypeSurface Mount
Package / Case1812 (4532 Metric), 3 PC Pad
Size / Dimension0.071" L x 0.177" W (1.80mm x 4.50mm)
Height0.138" (3.50mm)
