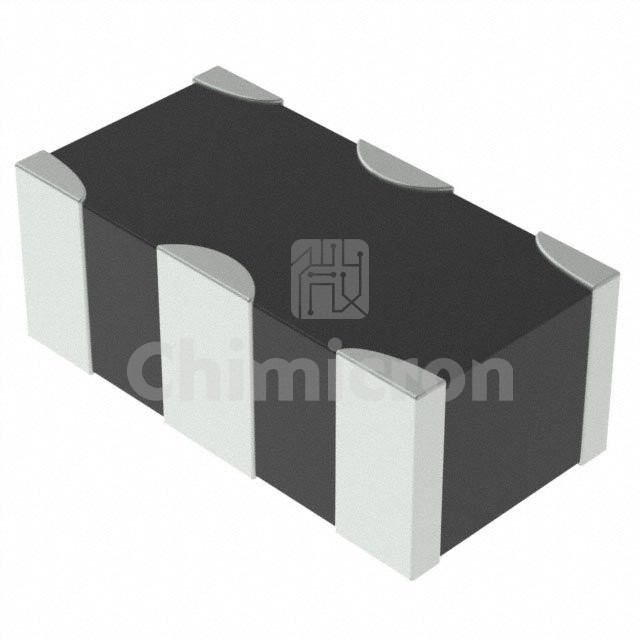

NFL18ST506H1A3D
Manufacturer: TOKO / Murata
Description: FILTER LC(T) 350NH/110PF SMD
Category : Filters
Family: EMI/RFI Filters (LC, RC Networks)
Series: EMIFIL®, NFL18
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NFL18ST506H1A3D TOKO / Murata at chimicron.com. We have 10500 pieces of NFL18ST506H1A3D in stock available now. Submit an inquiry for NFL18ST506H1A3D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesEMIFIL®, NFL18
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeLow Pass
Filter Order3rd
TechnologyLC (T-Type)
Number of Channels1
Center / Cutoff Frequency50MHz (Cutoff)
Attenuation Value6dB @ 0MHz ~ 50MHz
Resistance - Channel (Ohms)-
Current75 mA
ValuesL = 350nH, C = 110pF
ESD ProtectionNo
Operating Temperature-55°C ~ 125°C
ApplicationsGeneral Purpose
Voltage - Rated10V
Mounting TypeSurface Mount
Package / Case0603 (1608 Metric), 3 PC Pad
Size / Dimension0.063" L x 0.032" W (1.60mm x 0.80mm)
Height0.035" (0.90mm)
