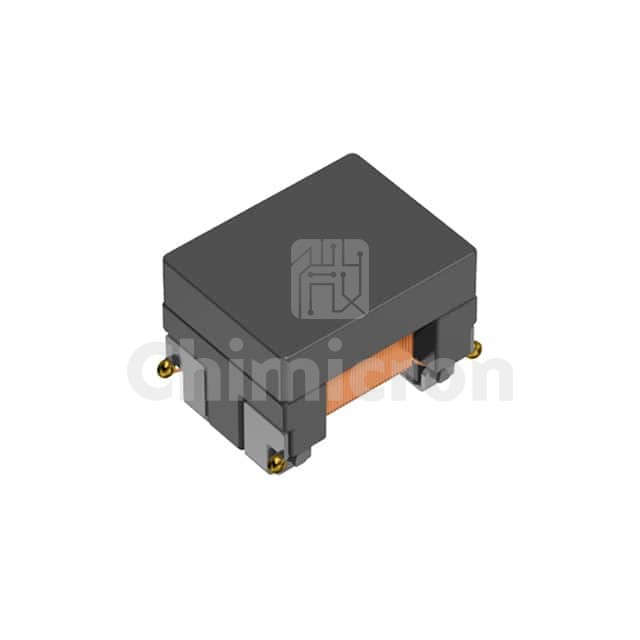

ACT1210G-800-2P-TL05
Manufacturer: TDK Corporation
Description: COMMON MODE FILTERS FOR AUTOMOTI
Category : Filters
Family: Common Mode Chokes
Series: ACT
In Stock:4080
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACT1210G-800-2P-TL05 TDK Corporation at chimicron.com. We have 4080 pieces of ACT1210G-800-2P-TL05 in stock available now. Submit an inquiry for ACT1210G-800-2P-TL05 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesACT
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency-
Inductance @ Frequency80 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency-
Current Rating (Max)70mA
DC Resistance (DCR) (Max)2.4Ohm
Voltage Rating - DC-
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
RatingsAEC-Q200
Approval Agency-
Features-
Mounting TypeSurface Mount
Size / Dimension0.154" L x 0.098" W (3.90mm x 2.50mm)
Height (Max)0.098" (2.50mm)
Package / CaseHorizontal, 4 PC Pad
