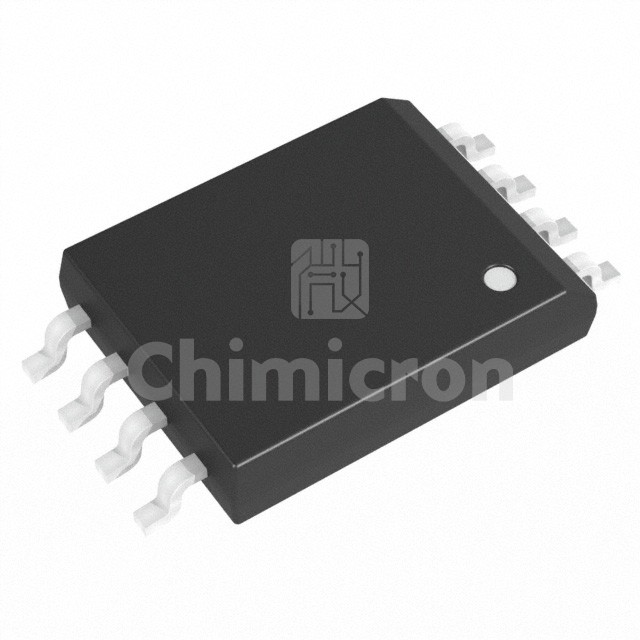

ADUM226N1BRIZ-RL
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: DGTL ISO 5000VRMS 2CH GP 8SOIC
Category : Isolators
Family: Digital Isolators
Series: iCoupler®
In Stock:2835
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADUM226N1BRIZ-RL Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2835 pieces of ADUM226N1BRIZ-RL in stock available now. Submit an inquiry for ADUM226N1BRIZ-RL or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTape & Reel (TR)
Part StatusActive
TechnologyMagnetic Coupling
TypeGeneral Purpose
Isolated PowerNo
Number of Channels2
Inputs - Side 1/Side 21/1
Channel TypeUnidirectional
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)75kV/µs
Data Rate150Mbps
Propagation Delay tpLH / tpHL (Max)13ns, 13ns
Pulse Width Distortion (Max)3ns
Rise / Fall Time (Typ)2.5ns, 2.5ns
Voltage - Supply1.7V ~ 5.5V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device Package8-SOIC-IC
