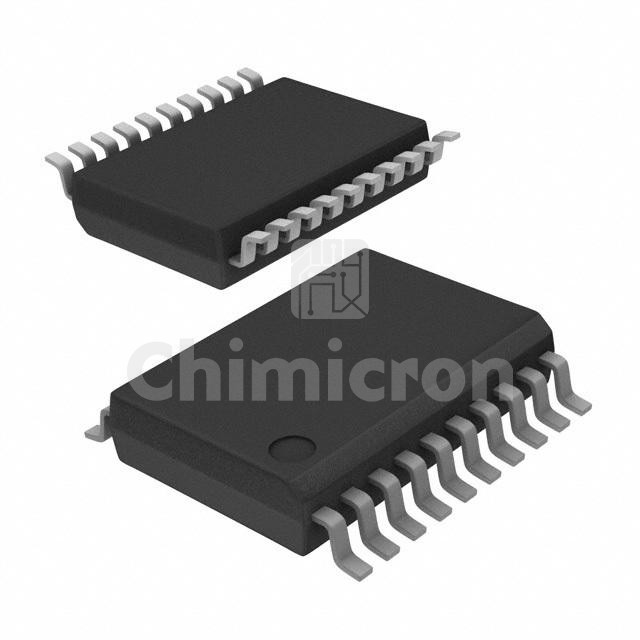

ADN4650BRSZ-RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: DGT ISO 3750VRMS 2CH LVDS 20SSOP
Category : Isolators
Family: Digital Isolators
Series: iCoupler®
In Stock:1400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADN4650BRSZ-RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1400 pieces of ADN4650BRSZ-RL7 in stock available now. Submit an inquiry for ADN4650BRSZ-RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyMagnetic Coupling
TypeLVDS
Isolated PowerNo
Number of Channels2
Inputs - Side 1/Side 22/0
Channel TypeUnidirectional
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)25kV/µs
Data Rate600Mbps
Propagation Delay tpLH / tpHL (Max)4.5ns, 4.5ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)350ps, 350ps (Max)
Voltage - Supply2.375V ~ 2.625V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-SSOP (0.209", 5.30mm Width)
Supplier Device Package20-SSOP
