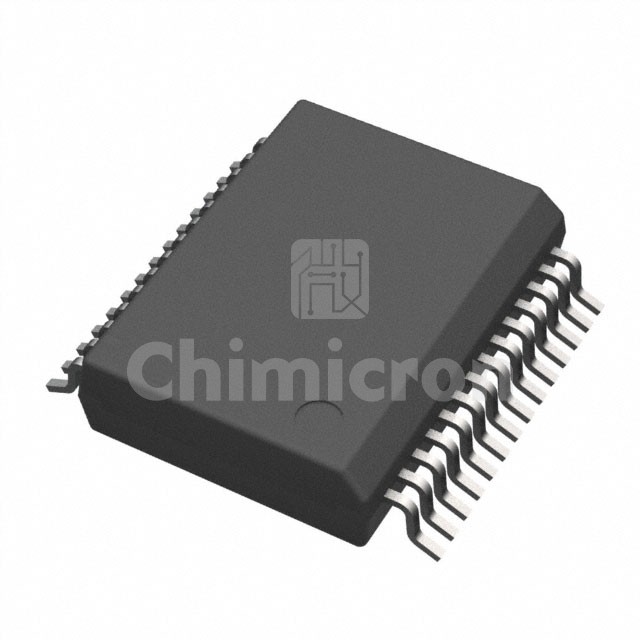

ADM2565EBRNZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: 3.75KV ISOPWR & ISORS485 25MBPS
Category : Isolators
Family: Digital Isolators
Series: iCoupler®
In Stock:34500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADM2565EBRNZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 34500 pieces of ADM2565EBRNZ in stock available now. Submit an inquiry for ADM2565EBRNZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTube
Part StatusActive
TechnologyMagnetic Coupling
TypeRS422, RS485
Isolated PowerYes
Number of Channels4
Inputs - Side 1/Side 21/3
Channel TypeUnidirectional
Voltage - Isolation3000Vrms
Common Mode Transient Immunity (Min)250kV/µs
Data Rate25Mbps
Propagation Delay tpLH / tpHL (Max)25ns, 25ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)4.5ns, 4.5ns
Voltage - Supply3V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package28-SOIC-W-FP
