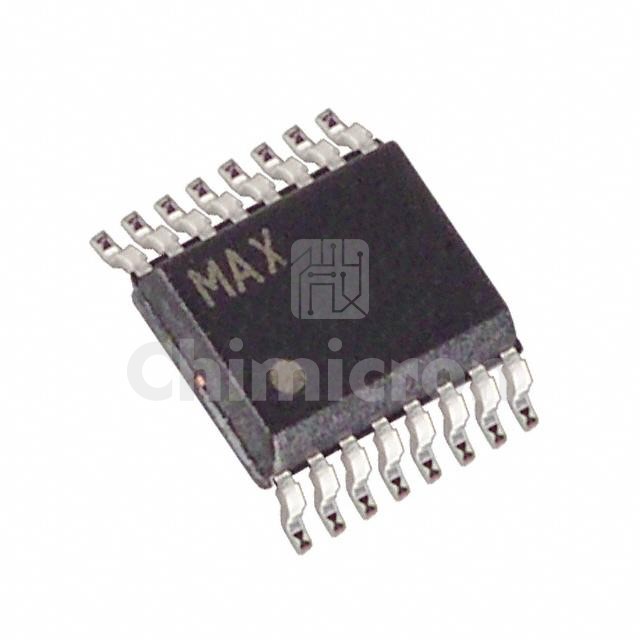

MAX14431CAEE+
Manufacturer: Maxim Integrated
Description: 4-CHANNEL, LOW POWER, 5KV DIGITA
Category : Isolators
Family: Digital Isolators
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX14431CAEE+ Maxim Integrated at chimicron.com. We have 100000 pieces of MAX14431CAEE+ in stock available now. Submit an inquiry for MAX14431CAEE+ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
TechnologyCapacitive Coupling
TypeSPI
Isolated PowerNo
Number of Channels4
Inputs - Side 1/Side 23/1
Channel TypeUnidirectional
Voltage - Isolation3000Vrms
Common Mode Transient Immunity (Min)50kV/µs (Typ)
Data Rate200Mbps
Propagation Delay tpLH / tpHL (Max)9.2ns, 9.4ns
Pulse Width Distortion (Max)2ns
Rise / Fall Time (Typ)1.6ns (Max), 1.4ns (Max)
Voltage - Supply1.71V ~ 5.5V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SSOP (0.154", 3.90mm Width)
Supplier Device Package16-QSOP
