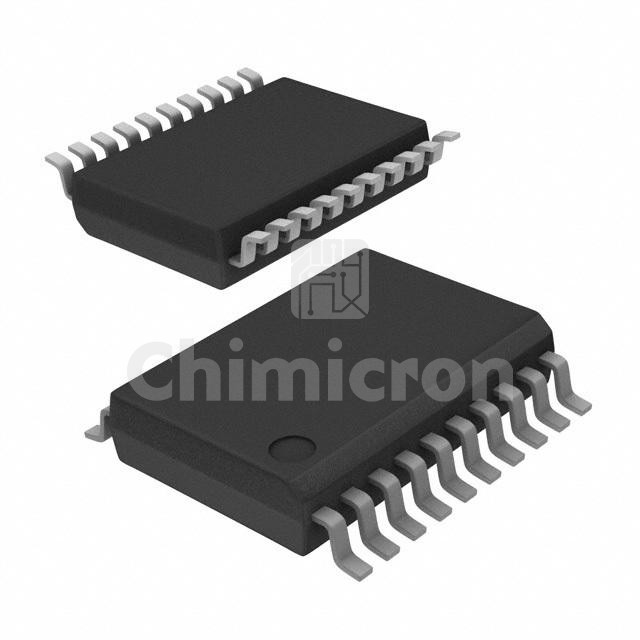

ADUM3472ARSZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: DGTL ISO 2500VRMS 4CH GP 20SSOP
Category : Isolators
Family: Digital Isolators
Series: iCoupler®
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADUM3472ARSZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 50000 pieces of ADUM3472ARSZ in stock available now. Submit an inquiry for ADUM3472ARSZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTube
Part StatusActive
TechnologyMagnetic Coupling
TypeGeneral Purpose
Isolated PowerNo
Number of Channels4
Inputs - Side 1/Side 22/2
Channel TypeUnidirectional
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)25kV/µs
Data Rate1Mbps
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Pulse Width Distortion (Max)40ns
Rise / Fall Time (Typ)2.5ns, 2.5ns
Voltage - Supply3V ~ 3.6V, 4.5V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case20-SSOP (0.209", 5.30mm Width)
Supplier Device Package20-SSOP
