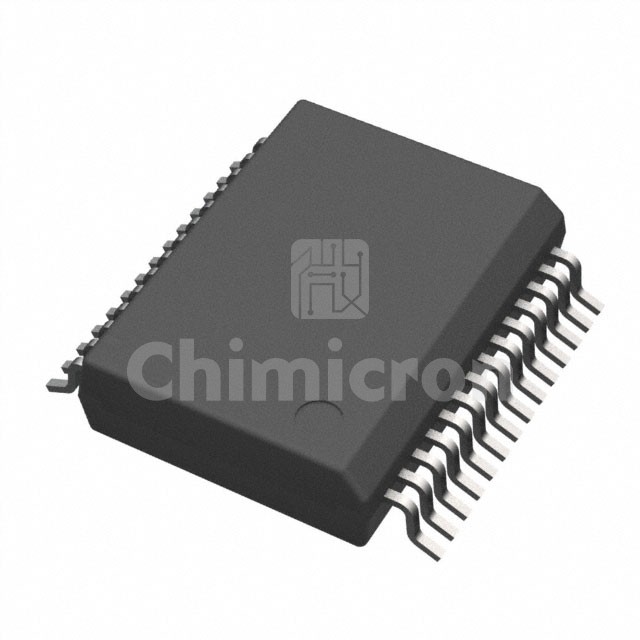

ADM2565EBRNZ-RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: 3.75KV ISOPWR & ISORS485 25MBPS
Category : Isolators
Family: Digital Isolators
Series: iCoupler®
In Stock:394
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADM2565EBRNZ-RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 394 pieces of ADM2565EBRNZ-RL7 in stock available now. Submit an inquiry for ADM2565EBRNZ-RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyMagnetic Coupling
TypeRS422, RS485
Isolated PowerYes
Number of Channels4
Inputs - Side 1/Side 21/3
Channel TypeUnidirectional
Voltage - Isolation3000Vrms
Common Mode Transient Immunity (Min)250kV/µs
Data Rate25Mbps
Propagation Delay tpLH / tpHL (Max)25ns, 25ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)4.5ns, 4.5ns
Voltage - Supply3V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package28-SOIC-W-FP
