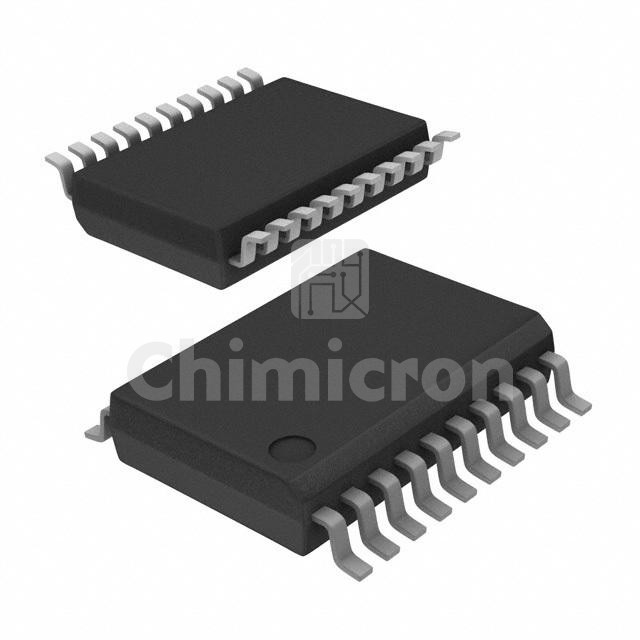

ADUM3480BRSZ-RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: DGTL ISO 3750VRMS 4CH GP 20SSOP
Category : Isolators
Family: Digital Isolators
Series: iCoupler®
In Stock:36750
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADUM3480BRSZ-RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 36750 pieces of ADUM3480BRSZ-RL7 in stock available now. Submit an inquiry for ADUM3480BRSZ-RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyMagnetic Coupling
TypeGeneral Purpose
Isolated PowerNo
Number of Channels4
Inputs - Side 1/Side 24/0
Channel TypeUnidirectional
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)25kV/µs
Data Rate25Mbps
Propagation Delay tpLH / tpHL (Max)33ns, 33ns
Pulse Width Distortion (Max)3ns
Rise / Fall Time (Typ)2.5ns, 2.5ns
Voltage - Supply1.8V ~ 5.5V, 3V ~ 5.5V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-SSOP (0.209", 5.30mm Width)
Supplier Device Package20-SSOP
