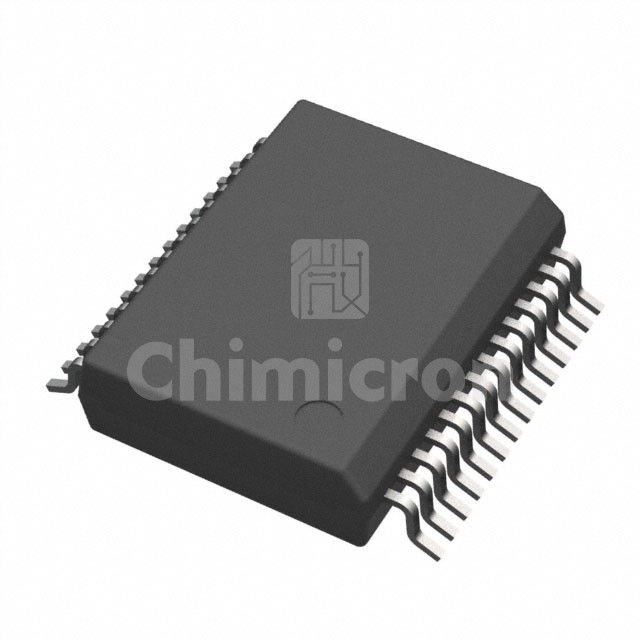

ADM2567EBRNZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: 3.75KV ISOLATED RS485 25MBPS FD
Category : Isolators
Family: Digital Isolators
Series: iCoupler®
In Stock:324
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADM2567EBRNZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 324 pieces of ADM2567EBRNZ in stock available now. Submit an inquiry for ADM2567EBRNZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTube
Part StatusActive
TechnologyMagnetic Coupling
TypeRS422, RS485
Isolated PowerYes
Number of Channels4
Inputs - Side 1/Side 21/3
Channel TypeUnidirectional
Voltage - Isolation3000Vrms
Common Mode Transient Immunity (Min)250kV/µs
Data Rate25Mbps
Propagation Delay tpLH / tpHL (Max)25ns, 25ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)4.5ns, 4.5ns
Voltage - Supply3V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package28-SOIC-W-FP
