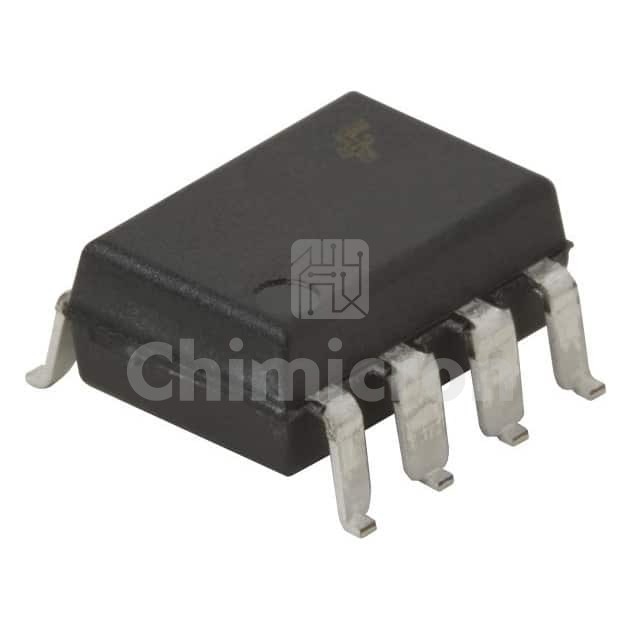

HCPL2601SD
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOISO 2.5KV OPN COLLECTOR 8SMD
Category : Isolators
Family: Optoisolators - Logic Output
Series: -
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCPL2601SD Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 500000 pieces of HCPL2601SD in stock available now. Submit an inquiry for HCPL2601SD or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)5kV/µs
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel50 mA
Data Rate10Mbps
Propagation Delay tpLH / tpHL (Max)75ns, 75ns
Rise / Fall Time (Typ)50ns, 12ns
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)50mA
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
