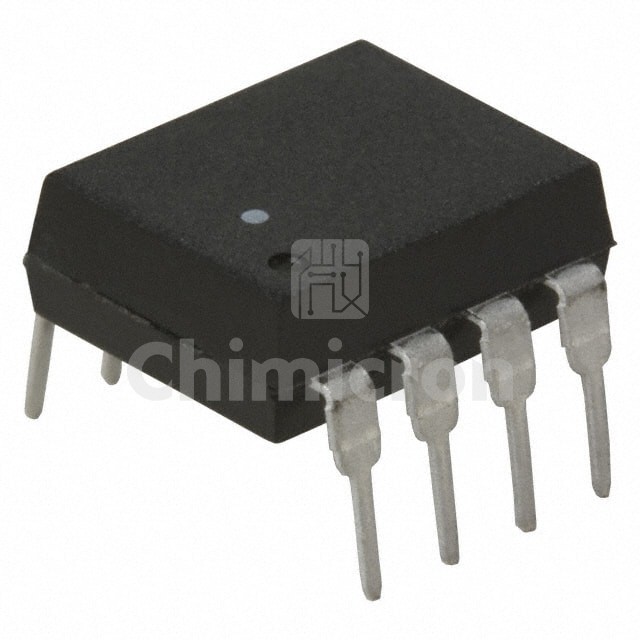

HCNW2611-000E
Manufacturer: Broadcom
Description: OPTOISO 5KV OPEN COLLECTOR 8DIP
Category : Isolators
Family: Optoisolators - Logic Output
Series: -
In Stock:400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCNW2611-000E Broadcom at chimicron.com. We have 400 pieces of HCNW2611-000E in stock available now. Submit an inquiry for HCNW2611-000E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)15kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel50 mA
Data Rate10MBd
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Rise / Fall Time (Typ)24ns, 10ns
Voltage - Forward (Vf) (Typ)1.64V
Current - DC Forward (If) (Max)20mA
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.400", 10.16mm)
Supplier Device Package8-DIP
