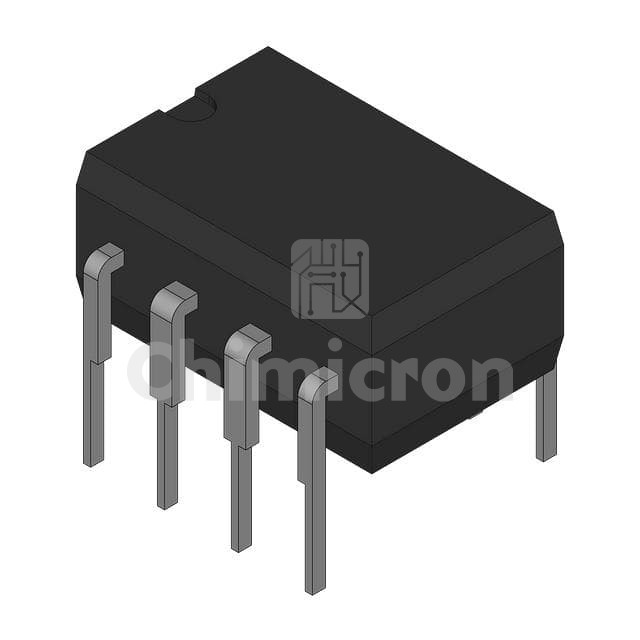

HCPL2601
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOISO 2.5KV OPN COLLECTOR 8DIP
Category : Isolators
Family: Optoisolators - Logic Output
Series: -
In Stock:225
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCPL2601 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 225 pieces of HCPL2601 in stock available now. Submit an inquiry for HCPL2601 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)5kV/µs
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel50 mA
Data Rate10Mbps
Propagation Delay tpLH / tpHL (Max)75ns, 75ns
Rise / Fall Time (Typ)50ns, 12ns
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)50mA
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
