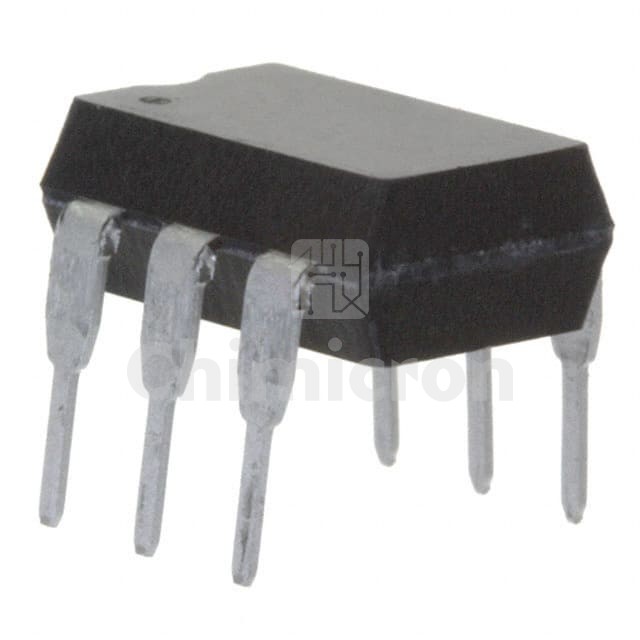

TCDT1124
Manufacturer: Vishay / Semiconductor - Opto Division
Description: OPTOISOLATOR 5KV TRANS 6DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TCDT1124 Vishay / Semiconductor - Opto Division at chimicron.com. We have 500 pieces of TCDT1124 in stock available now. Submit an inquiry for TCDT1124 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)160% @ 10mA
Current Transfer Ratio (Max)320% @ 10mA
Turn On / Turn Off Time (Typ)4µs, 4.7µs
Rise / Fall Time (Typ)4µs, 4.7µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
