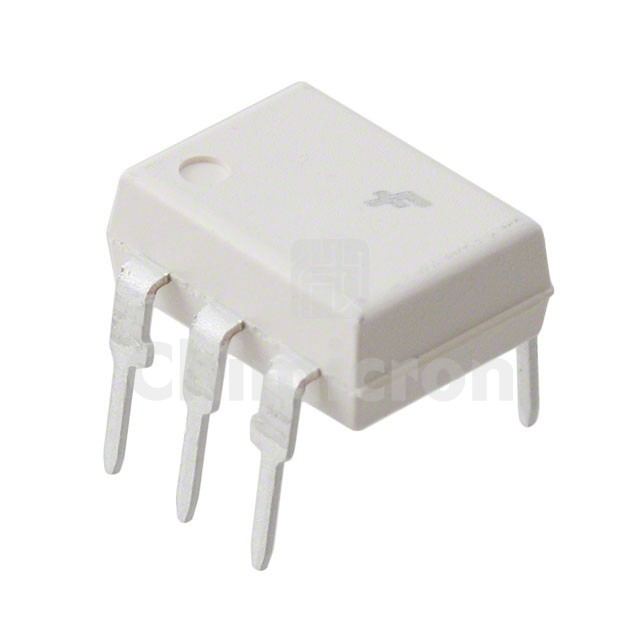

TIL113
Manufacturer: Everlight Electronics
Description: OPTOISO 5KV DARL W/BASE 6DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:500500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TIL113 Everlight Electronics at chimicron.com. We have 500500 pieces of TIL113 in stock available now. Submit an inquiry for TIL113 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)300% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)5µs, 100µs (Max)
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington with Base
Voltage - Output (Max)55V
Current - Output / Channel-
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)1.2V
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
