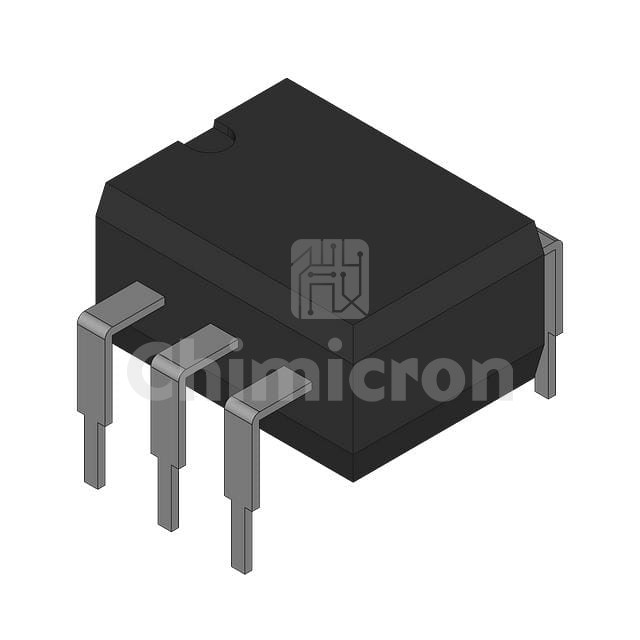

H11AA1M
Manufacturer: Rochester Electronics
Description: AC INPUT-TRANSISTOR OUTPUT OPTOC
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:1050
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the H11AA1M Rochester Electronics at chimicron.com. We have 1050 pieces of H11AA1M in stock available now. Submit an inquiry for H11AA1M or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)20% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)10µs, 10µs (Max)
Rise / Fall Time (Typ)10µs, 10µs (Max)
Input TypeAC, DC
Output TypeTransistor with Base
Voltage - Output (Max)80V
Current - Output / Channel-
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.400", 10.16mm)
Supplier Device Package6-DIP
