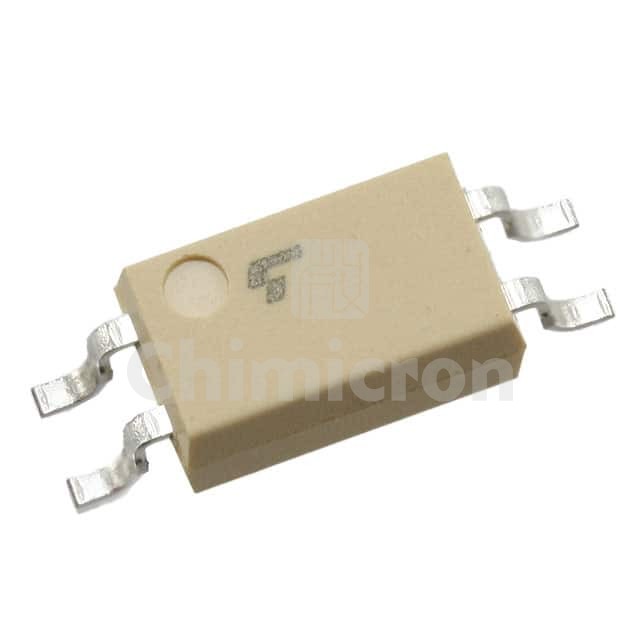

TLP293(TPL,E
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISOLATOR 3.75KV TRANS 4-SO
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:7500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP293(TPL,E Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 7500 pieces of TLP293(TPL,E in stock available now. Submit an inquiry for TLP293(TPL,E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)50% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)2µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case4-SOIC (0.179", 4.55mm Width)
Supplier Device Package4-SO
