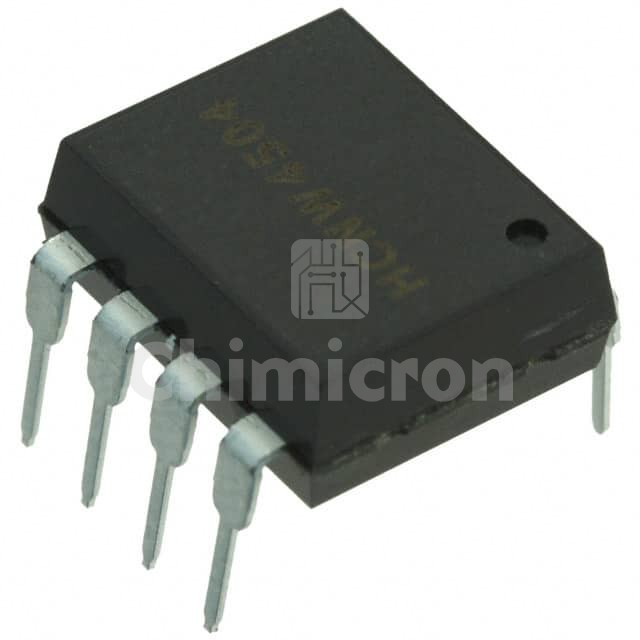

HCNW4504-000E
Manufacturer: Broadcom
Description: OPTOISOLATOR 5KV TRANSISTOR 8DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:1817
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCNW4504-000E Broadcom at chimicron.com. We have 1817 pieces of HCNW4504-000E in stock available now. Submit an inquiry for HCNW4504-000E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)19% @ 16mA
Current Transfer Ratio (Max)63% @ 16mA
Turn On / Turn Off Time (Typ)200ns, 300ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.59V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.400", 10.16mm)
Supplier Device Package8-DIP
