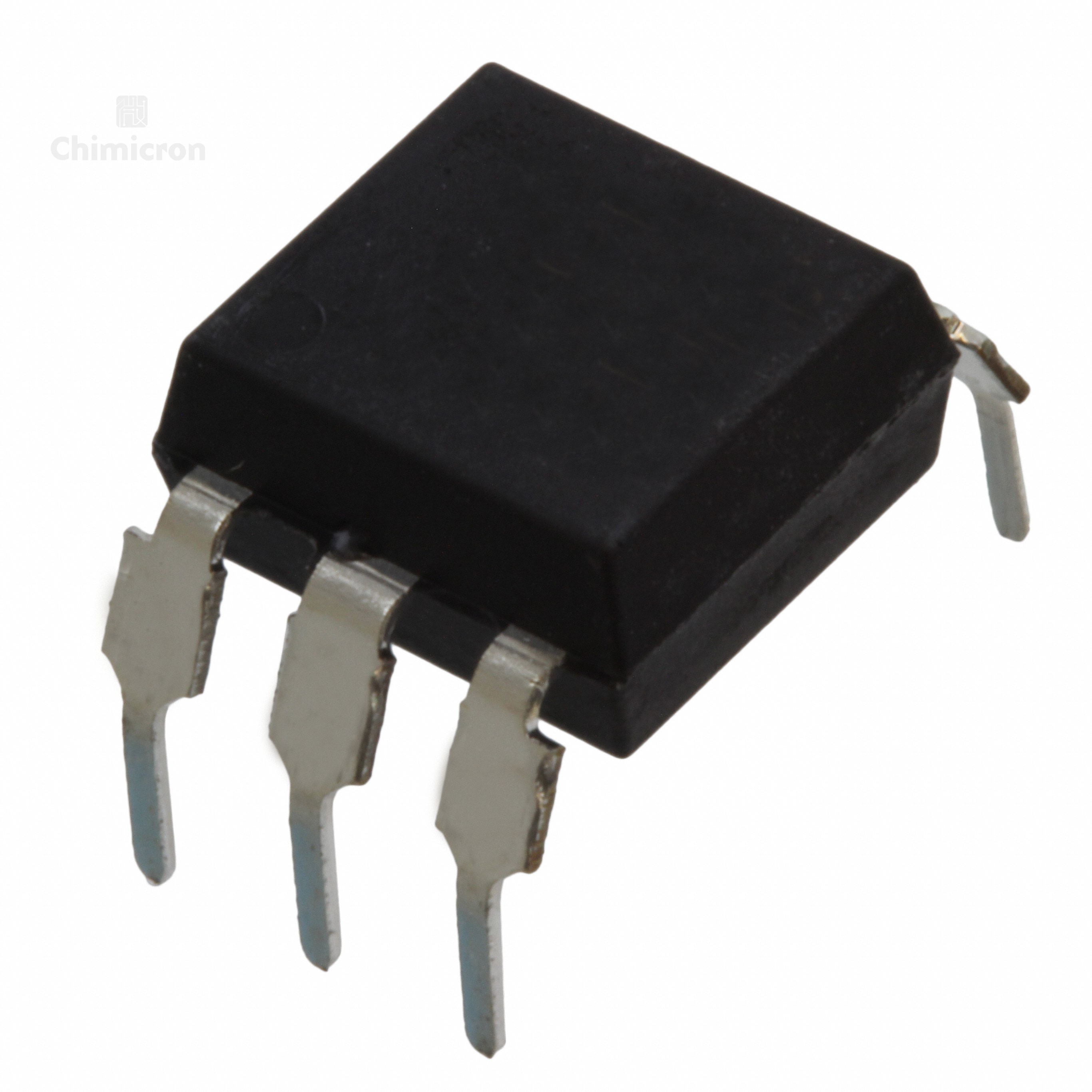

CQY80NG
Manufacturer: Vishay / Semiconductor - Opto Division
Description: OPTOISO 5KV TRANS W/BASE 6DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CQY80NG Vishay / Semiconductor - Opto Division at chimicron.com. We have 500 pieces of CQY80NG in stock available now. Submit an inquiry for CQY80NG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)50% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)11µs, 7µs
Rise / Fall Time (Typ)7µs, 6.7µs
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)32V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.400", 10.16mm)
Supplier Device Package6-DIP
