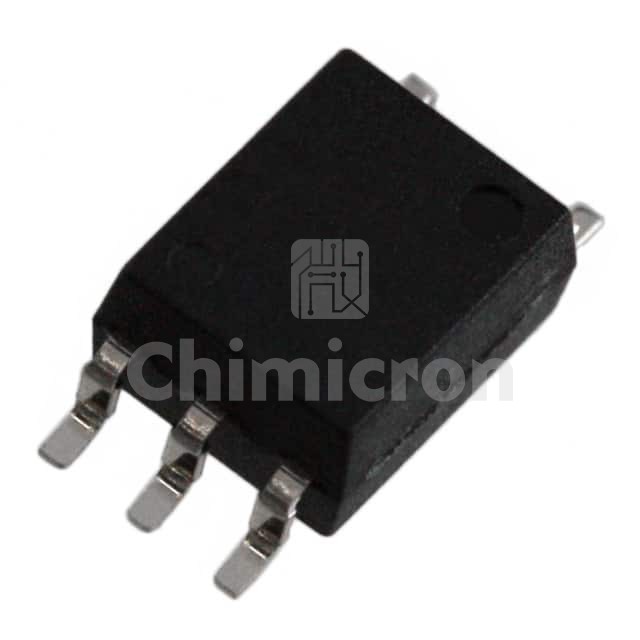

TLX9309(TPL,F
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: IC COUPLER; 4-PIN SO6; AECQ; ROH
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: Automotive, AEC-Q101
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLX9309(TPL,F Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 50000 pieces of TLX9309(TPL,F in stock available now. Submit an inquiry for TLX9309(TPL,F or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)15% @ 7mA
Current Transfer Ratio (Max)300% @ 7mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)-
Current - Output / Channel25mA
Voltage - Forward (Vf) (Typ)1.6V
Current - DC Forward (If) (Max)15 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package6-SO, 5 Lead
