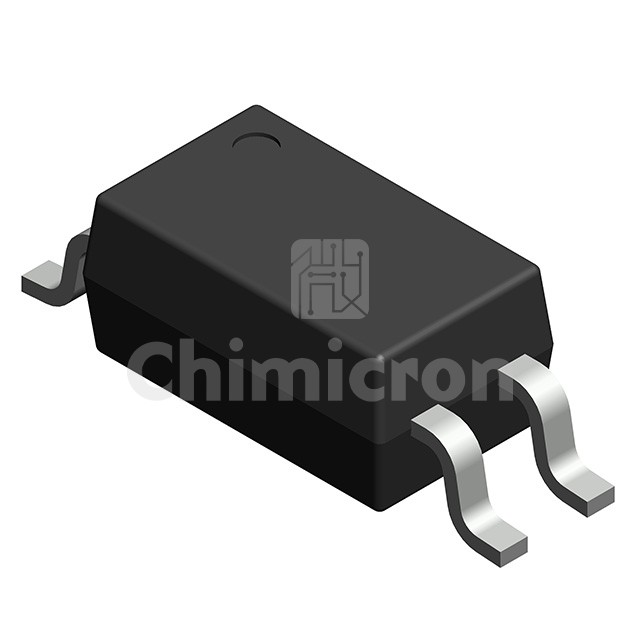

PS2701-1-F3-A
Manufacturer: Renesas Electronics America
Description: OPTOISOLATOR 3.75KV TRANS 4SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: NEPOC
In Stock:11000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PS2701-1-F3-A Renesas Electronics America at chimicron.com. We have 11000 pieces of PS2701-1-F3-A in stock available now. Submit an inquiry for PS2701-1-F3-A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNEPOC
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)50% @ 5mA
Current Transfer Ratio (Max)300% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)3µs, 5µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)40V
Current - Output / Channel80mA
Voltage - Forward (Vf) (Typ)1.1V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SMD
