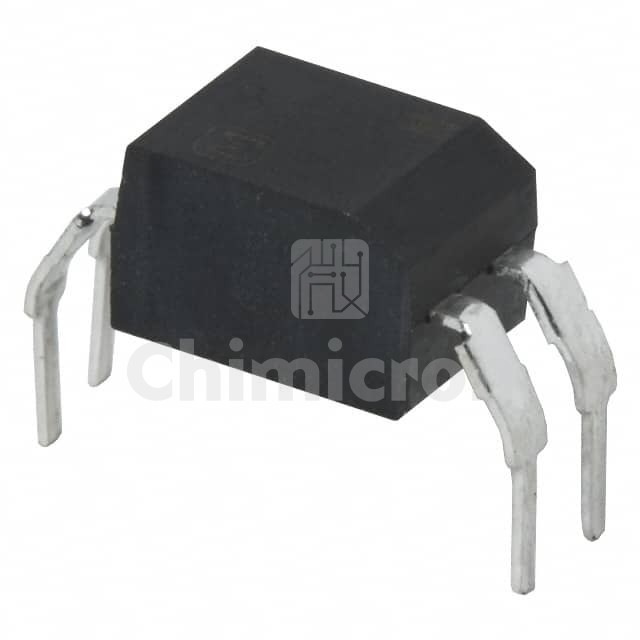

SFH615A-3X006
Manufacturer: Vishay / Semiconductor - Opto Division
Description: OPTOISOLATOR 5.3KV TRANS 4DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:109995
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SFH615A-3X006 Vishay / Semiconductor - Opto Division at chimicron.com. We have 109995 pieces of SFH615A-3X006 in stock available now. Submit an inquiry for SFH615A-3X006 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)100% @ 10mA
Current Transfer Ratio (Max)200% @ 10mA
Turn On / Turn Off Time (Typ)3µs, 2.3µs
Rise / Fall Time (Typ)2µs, 2µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.35V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.400", 10.16mm)
Supplier Device Package4-DIP
