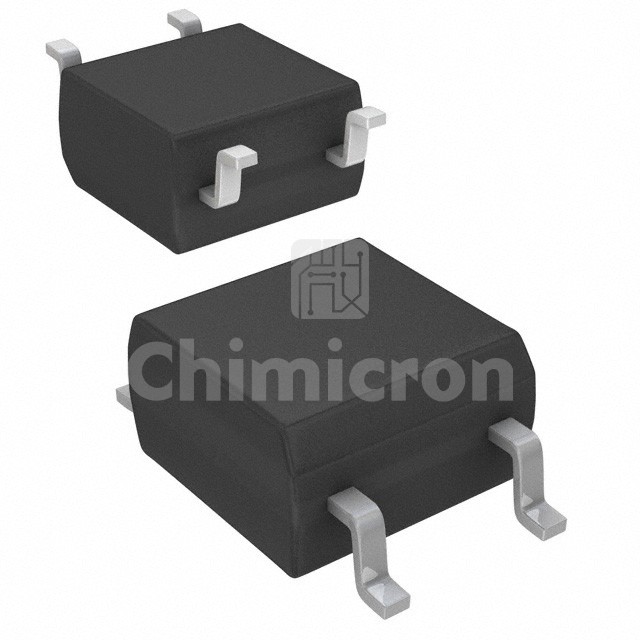

TLP187(TPL,E
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISO 3.75KV DARL 6-SO, 4 LEAD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:193009
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP187(TPL,E Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 193009 pieces of TLP187(TPL,E in stock available now. Submit an inquiry for TLP187(TPL,E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)1000% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)50µs, 15µs
Rise / Fall Time (Typ)40µs, 15µs
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)300V
Current - Output / Channel150mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)1.2V
Operating Temperature-55°C ~ 110°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package6-SO, 4 Lead
